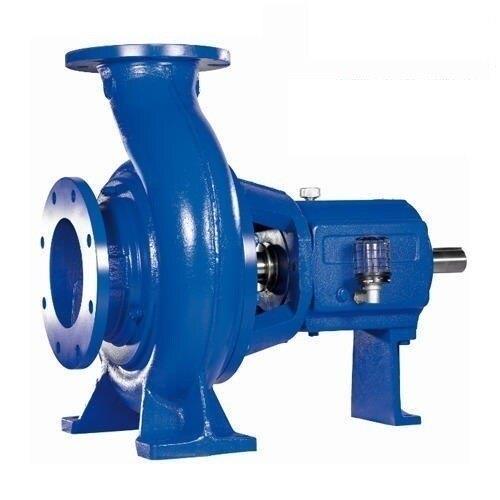

End Suction Centrifugal Pump
We supply Entity Brand End Suction Centrifugal Pump.
TECHNICAL SPECIFICATION
| Delivery Size | Up to 250 mm |
| Rate of Flow | Up to 1200 m³/h |
| Head | Up to 150 m |
| Temperature | Up to 180ºC |
| Working Pressure | Up to 25 kg/cm² |
These pumps are offered in different materials of construction such as Grey Cast Iron, Alloyed Cast Iron, Alloy Steels in grades CF8/AISI 304, CF8M/AISI 316, CF3M/AISI 316L, CN7M (Alloy 20), Bronze, Cast Steel Gr WCB.
OPTIONAL FEATURES
- Cooling jacket for stuffing box cover for higher temperatures
- Provision of single/double mechanical seal
- Steam jacketed casing and stuffing box cover for liquids which solidify at ambient temperature
APPLICATIONS / LIQUIDS HANDLED
The ENTITY make horizontal back pullout process pumps are most suitable for industries such as chemical industries, petrochemical industries, textile industries, brewing industries, starch industries, fertilizer industries, biotech industries, paper and pulp industries, power plants, steel plants, sugar industries etc. for handling aggressive organic/inorganic toxic liquids and explosive liquids such as chlorides, dyes, sulphides, phosphates, solvents, spent wash, fermented wash, oils, acids, alkalis etc.
- Back pullout construction for dismantling the entire rotating assembly without disconnecting the piping from the casing.
- Heavy duty bearings for giving longer bearing life.
- Liberal shaft size to avoid premature failure.
- Closed or Semi open impeller that gives high efficiency and low NPSH.
- Double wearing ring/wear plate design for semi open impeller to protect impeller and casing from wear.
